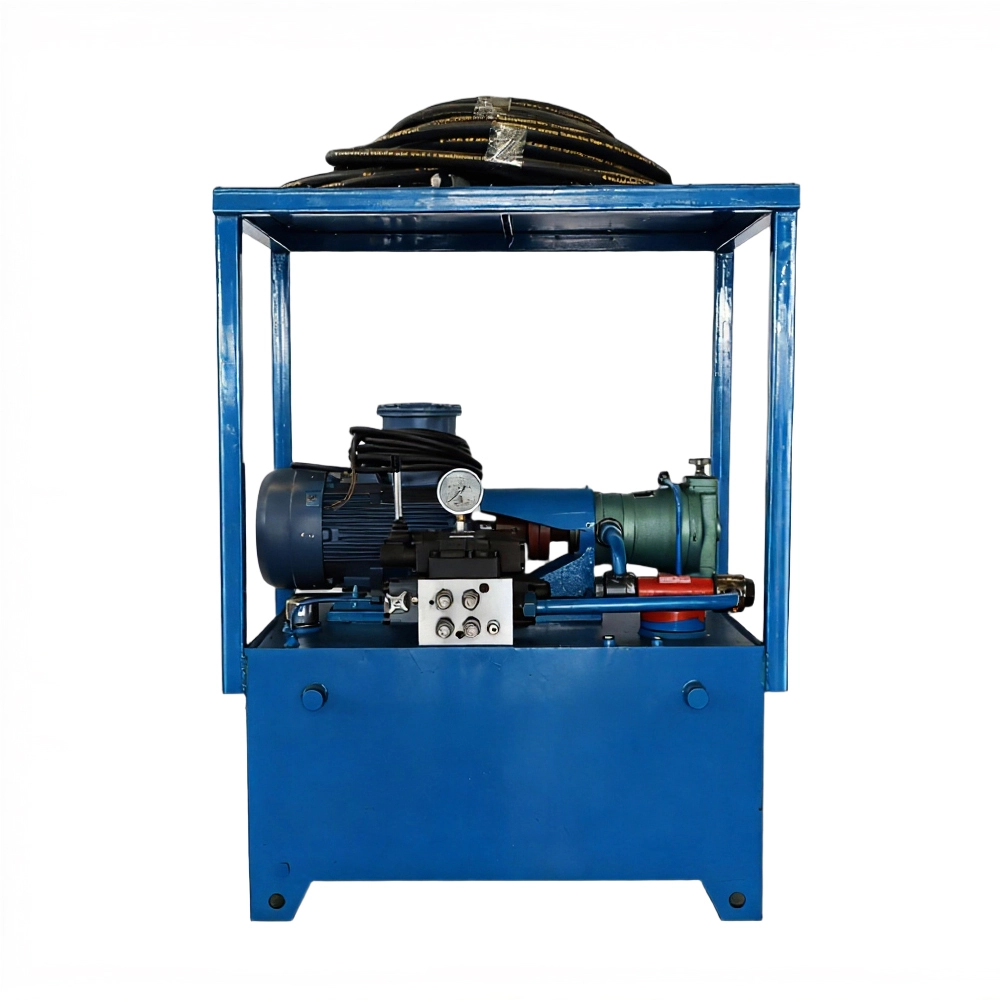

TPP300 Hydraulic Station
The TPP hydraulic station is a device specifically designed to provide power sources for hot tapping machines and plugging machines. Due to the special nature of the assignment, the motor used is an explosion-proof motor.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Key Features
The TPP hydraulic station is a device specifically designed to provide power sources for hot tapping machines and plugging machines. Due to the special nature of the assignment, the motor used is an explosion-proof motor.
parameters
| Model | TPP150 | TPP300 | TPP500 | TPP700 |
| Explosion Proof Motor Model | YB112M-4 | YB160M-4 | YB180M-4W | YB240M-4W |
| Electric Motor Power and Speed |
N=4KW N=1440r/min |
N=11KW N=1460r/min |
N=18.5KW N=1470r/min |
N=35KW N=2400r/min |
| Current, Voltage and Frequency |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
| Maximum Working Pressure |
12.5 MPa |
15MPa | 21MPa | 28MPa |
| Maximum Output Flow Rate |
14L/min |
60L/min | 90L/min | 150L/min |
| Fuel Tank Capacity | 100L | 300L | 350L | 500L |
