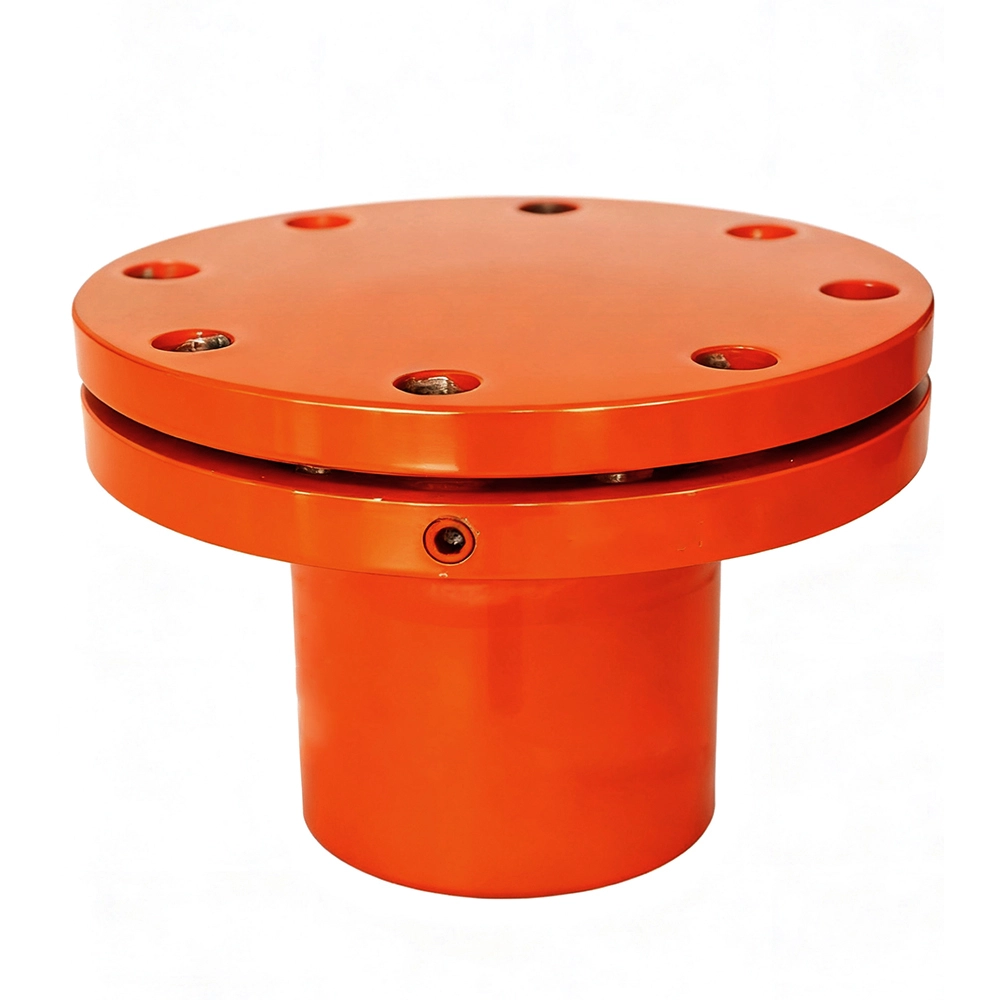

BF150 Balanced Pressure Tee
Balanced pressure tee is a type of consumable part with completed blockage, which is welded to the pipeline to provide a fixed seat for wafer valves and hot tapping machines or plugging machines. It is equipped with plug, which is installed in the flange to cut off the medium after the operation is completed, making it easy to remove the wafer valve. The internal structure has two forms of pins and locking blocks to tighten the blockage.
Key Features
Balanced pressure tee is a type of consumable part with completed blockage, which is welded to the pipeline to provide a fixed seat for wafer valves and hot tapping machines or plugging machines.
It is equipped with plug, which is installed in the flange to cut off the medium after the operation is completed, making it easy to remove the wafer valve. The internal structure has two forms of pins and locking blocks to tighten the blockage.
parameters
|
Applicable Media |
Oil, natural gas, water, coal gas, light oil, aviation fuel, and other non-corrosive media |
|
Suitable Diameter |
DN80-DN800 |
|
Pipeline Medium Temperature |
-20-80°C |
|
Pipeline Medium Pressure |
≤ 6.4 MPa |
Applicable Media
Oil, natural gas, water, coal gas, light oil, aviation fuel, and other non-corrosive media
Taitat Changlin Pipeline Technology (Jiangxi) Co., Ltd.
