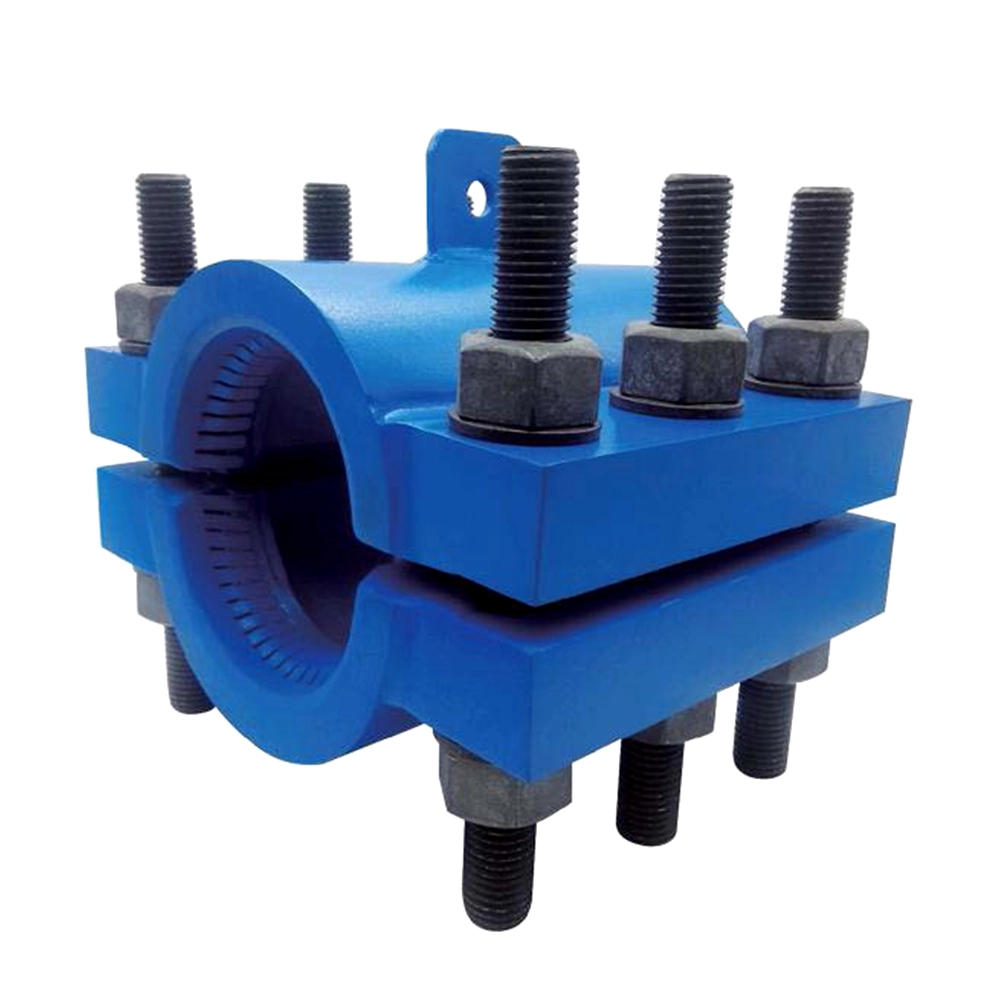

SRS200 Split Repair Sleeve
Split repair sleeve is a specialized device developed specifically for various high-pressure pipeline leaks. The standard working pressure is 64 bar, and using the working pressure can increase it up to 100 bar or 140 bar, design and production can also be carried out according to customer requirements.
Key Features
All split repair sleeve are subjected to a hydrostatic test at 1.5 times the design pressure.
The standard sealing strip material is ethylene propylene rubber, nitrile rubber, as well as fluorosilicone, silicone and other materials. Other materials are available for selection. Special specification requirements can be contacted for customization.
parameters
|
Applicable Media |
Oil, natural gas, water, coal gas and other non-corrosive media |
|
Suitable Diameter |
DN50-DN800 |
|
Pipeline Medium Temperature |
-20-80°C |
|
Pipeline Medium Pressure |
≤ 6.4 MPa |
Applicable Media
Oil, natural gas, water, coal gas and other non-corrosive media
