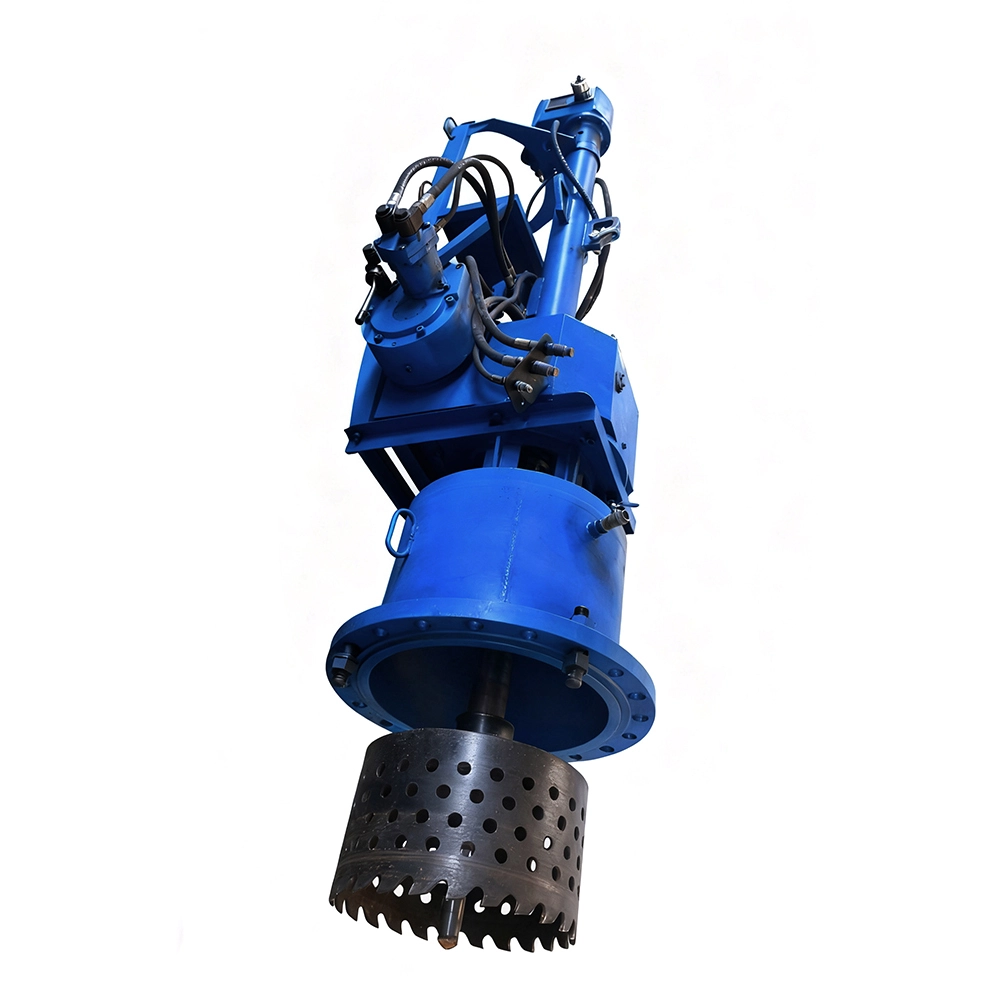

HT500G Hydraulic Hot Tapping Machine
This series of hot tapping machines is hydraulically driven, using a hydraulic balancing system to perform pipeline tapping.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Key Features
Applicable Media: Oil, natural gas, water, gas, oil, fuel and other media.
Pipeline Medium Temperature: -20~80℃
Pipeline Medium Pressure: 0~10MPa
Drive Type: Hydraulic
parameters
|
Model |
HT150G |
HT300G |
HT500G |
|
Opening range (mm) |
Φ40~Φ190 |
Φ190~Φ400 |
Φ390~Φ760 |
|
Maximum stroke（mm） |
1000 |
1200 |
1800 |
|
Design pressure（MPa） |
10.0MPa |
10.0MPa |
10.0MPa |
Applicable Media
Oil, natural gas, water, gas, oil, fuel and other media
