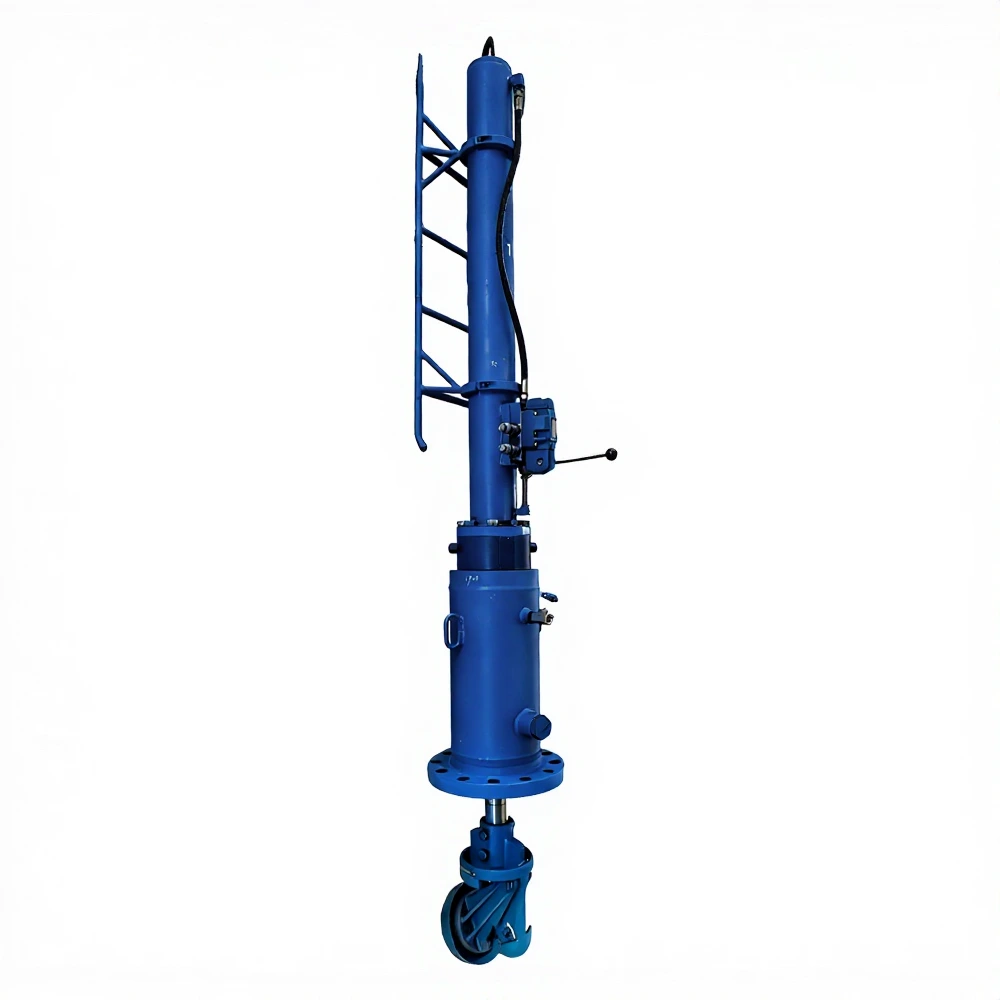

The suspended line stopping machine is suitable for emergency repair on long-distance pipelines. This technology features a tight seal, high pressure resistance, and fast installation.
Key Features
The suspended line stopping machine is suitable for emergency repair on long-distance pipelines.
This technology features a tight seal, high pressure resistance, and fast installation.
Specifications
| Model | FDQ150 | FDQ300 | FDQ500 | FDQ700 | FDQ1000 |
| Pipe Diameter(mm) | 219 | 325 | 529 | 720 | 1020 |
| Maximum Stroke(mm) | 1000 | 1400 | 1800 | 2800 | 4000 |
| Pressure(MPa) | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 |
| Pipeline Medium Temperature | ≤ 70°C | ||||
| Pipeline Medium Pressure | ≤ 10.0 MPa | ||||
| Drive Type | Hydraulic | ||||
Applicable Media
Petroleum, natural gas, refined oil, and other media.
